Delivering Confidence and Simplicity during Neuromuscular Blockade

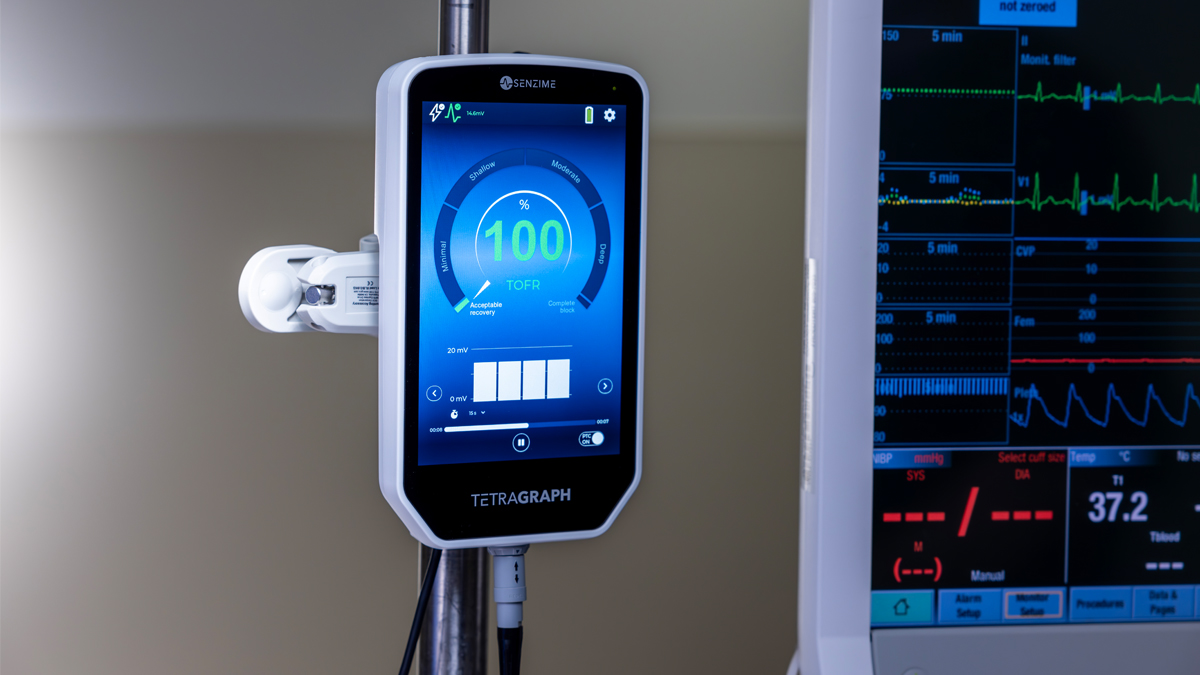

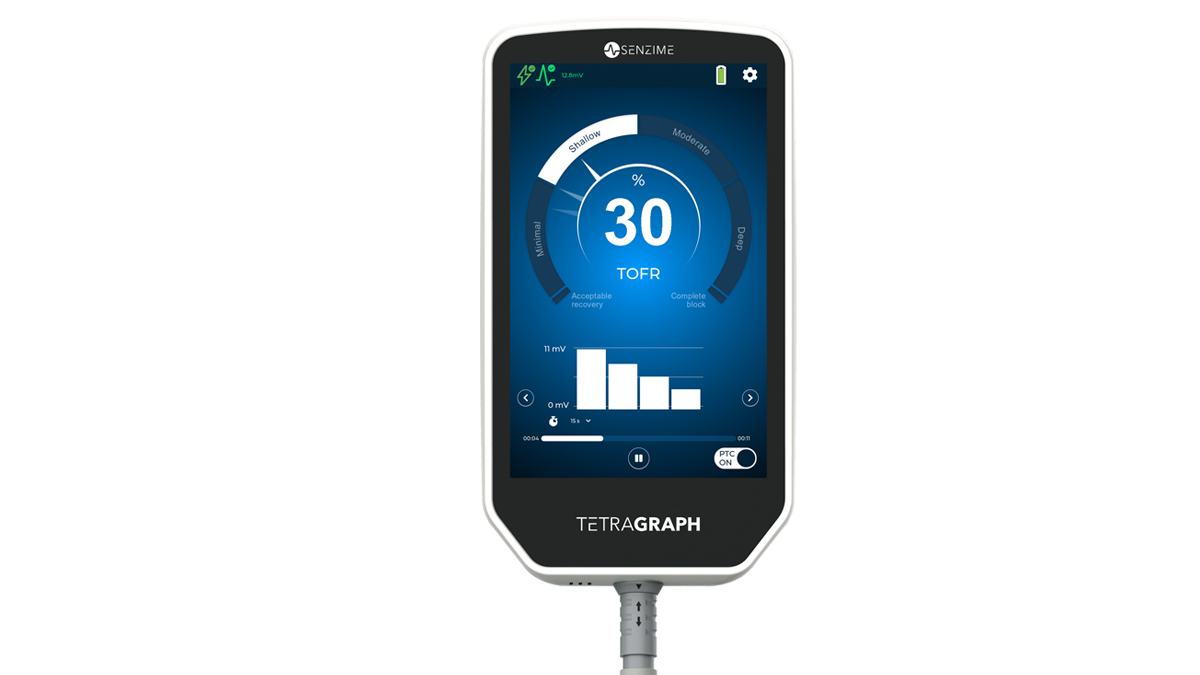

TetraGraph is a quantitative neuromuscular transmission monitor based on electromyography (EMG). The TetraGraph monitor stimulates, measures, analyzes and displays muscle function in surgical patients receiving neuromuscular blocking agents (NMBAs). NMBAs are used in almost 50% of surgical cases. Inadequate reversal of NMBAs can lead to residual neuromuscular blockade (RNMB). RNMB delays recovery and can lead to life-threatening complications. To prevent complications, quantitative neuromuscular monitoring is rapidly becoming the standard of care when NMBAs are administered.

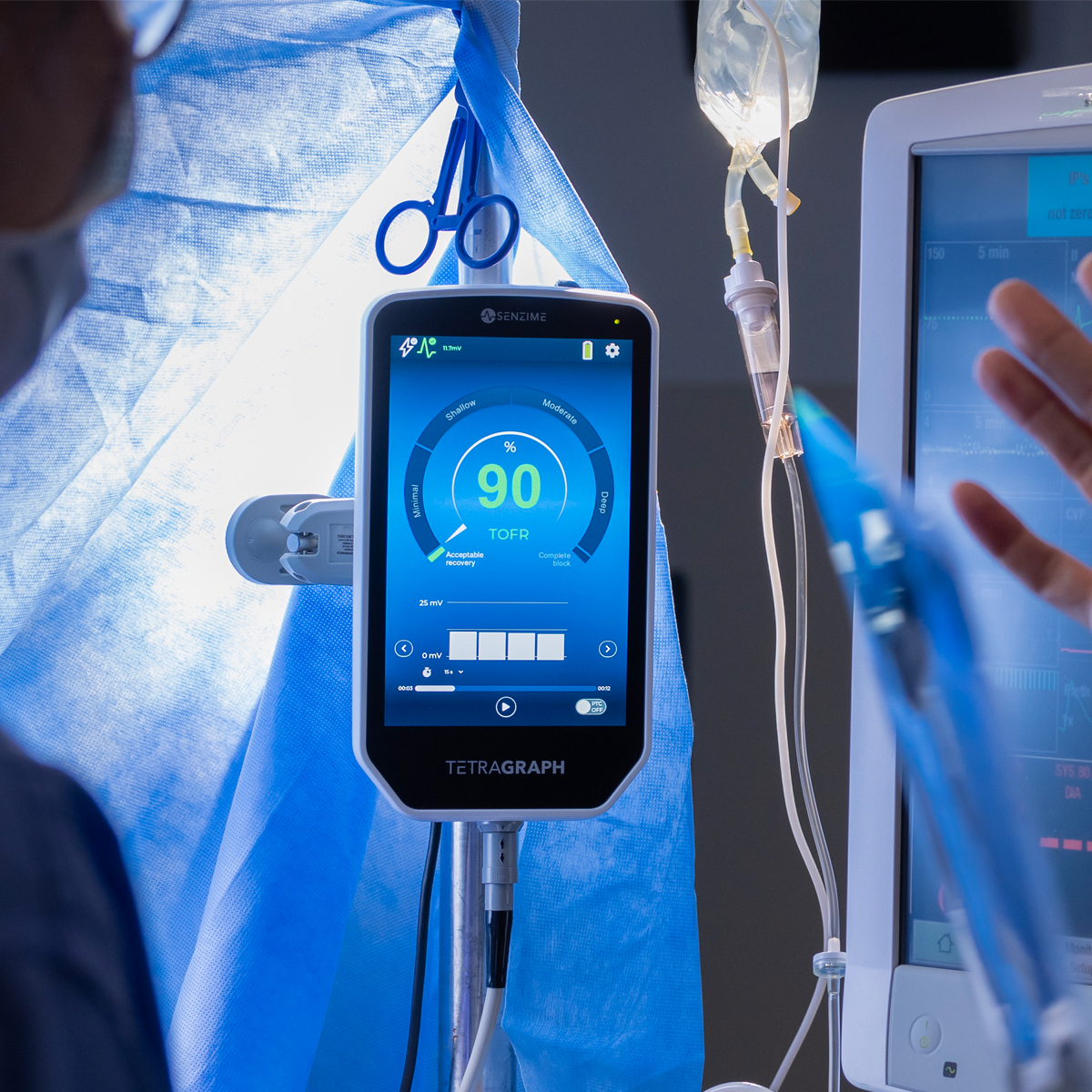

The TetraGraph monitor is easy to use and features gold standard EMG technology for accurate measurements to bring confidence to the anesthesiology practice. The device has a quick start up time and does not require calibration. The arm can be tucked under surgical drape and can thus be used in all types of procedures, including cardiac, neuro, laparoscopic, robotic and bariatric surgeries. TetraGraph can be used from start to finish during the surgical procedure. The monitor enables objective assessment and facilitates titration of medication dosage to help clinicians determine when the patient’s neuromuscular block is sufficiently reversed to allow adequate spontaneous breathing. TetraGraph is small and portable and can travel with the patient to different settings like OR, PACU or ICU. The TetraGraph can be operated connected to mains electricity or battery operated.
Neuromuscular Transmission is the transfer of an electrical impulse between a motor nerve and its associated muscle. A Neuromuscular Transmission (NMT) monitor indicates the depth of neuromuscular block by stimulation of a peripheral motor nerve and evaluating the evoked muscle response (compound muscle action potential, CMAP). Transmission of impulses from the nerve to the muscle is blocked by neuromuscular blocking agents (NMBAs) causing transient muscle weakness and preventing the patient from moving and breathing spontaneously.
Muscle relaxation is used during general anesthesia to enable endotracheal intubation and to provide optimal surgical conditions. In critical care, muscle relaxation may be used during mechanical ventilation. In these circumstances, TetraGraph can be used as an objective monitor of Neuromuscular Transmission.
TetraGraph undertakes this function by periodically delivering electrical stimulation to the peripheral nerve and directly measuring the evoked electromyographic (EMG) response of the muscles (compound muscle action potential, CMAP). This provides a precise and automatic measurement of muscle response to a stimulus.
Like other technologies, EMG involves stimulation of a peripheral nerve and measurement of the response that is generated by the contraction of the innervated muscle. The difference from other technologies is that EMG measures an electrical event that occurs at the neuromuscular junction; the activation of postsynaptic receptors by acetylcholine (a chemical process) that converts it to a mechanical response (excitation- contraction coupling), that results in muscle contraction. Because measurement of function does not depend on physical movement (as MMG, AMG or KMG require), EMG is a better indicator of pure neuromuscular function- EMG is the new gold standard.
Neuromuscular Transmisson (NMT) is the transfer of an impulse between a nerve and a muscle in the neuromuscular junction. EMG measures the compound action potential, which is the first signal we are able to measure after neuromuscular transmission. Therefore, EMG is most specifically suited to monitor the effect of muscle relaxants without any mechanic interferences.

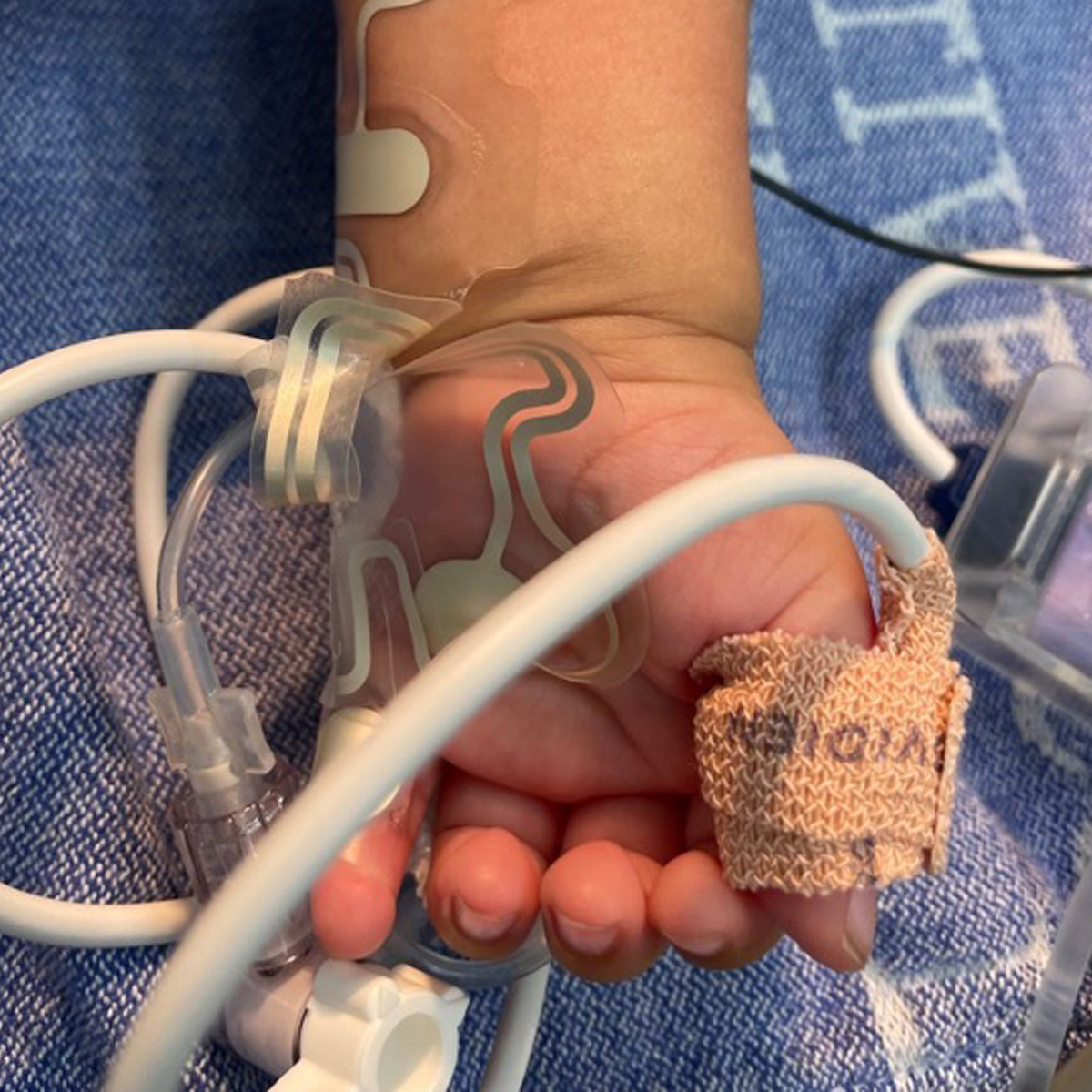

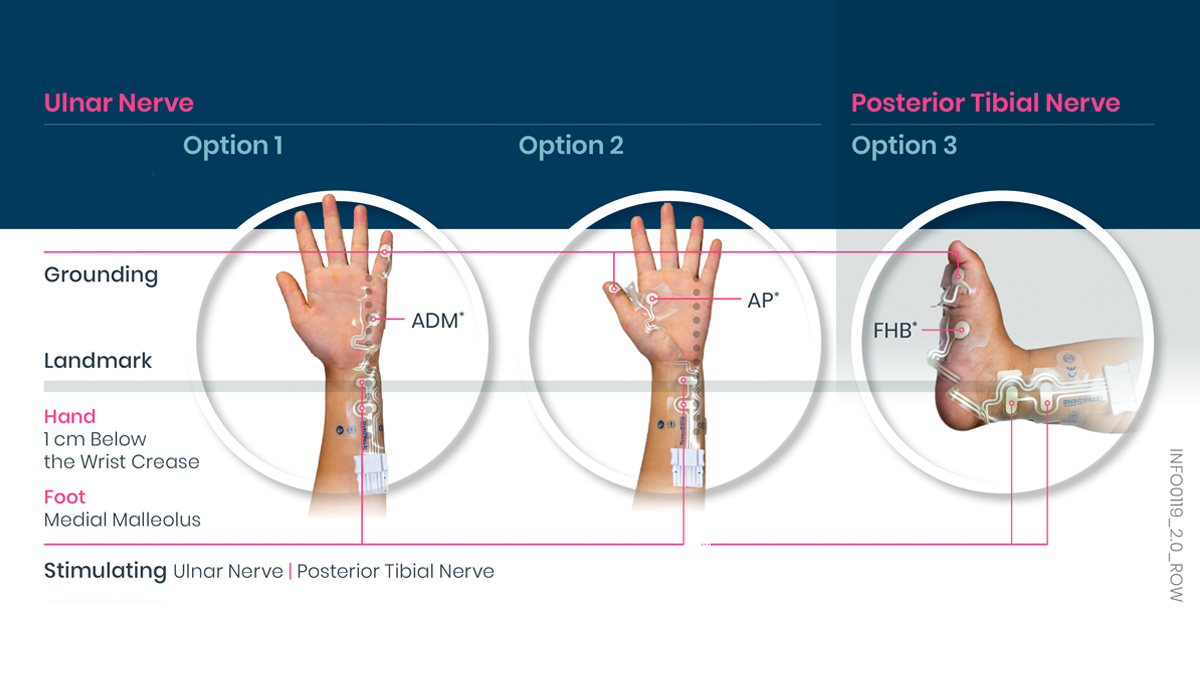

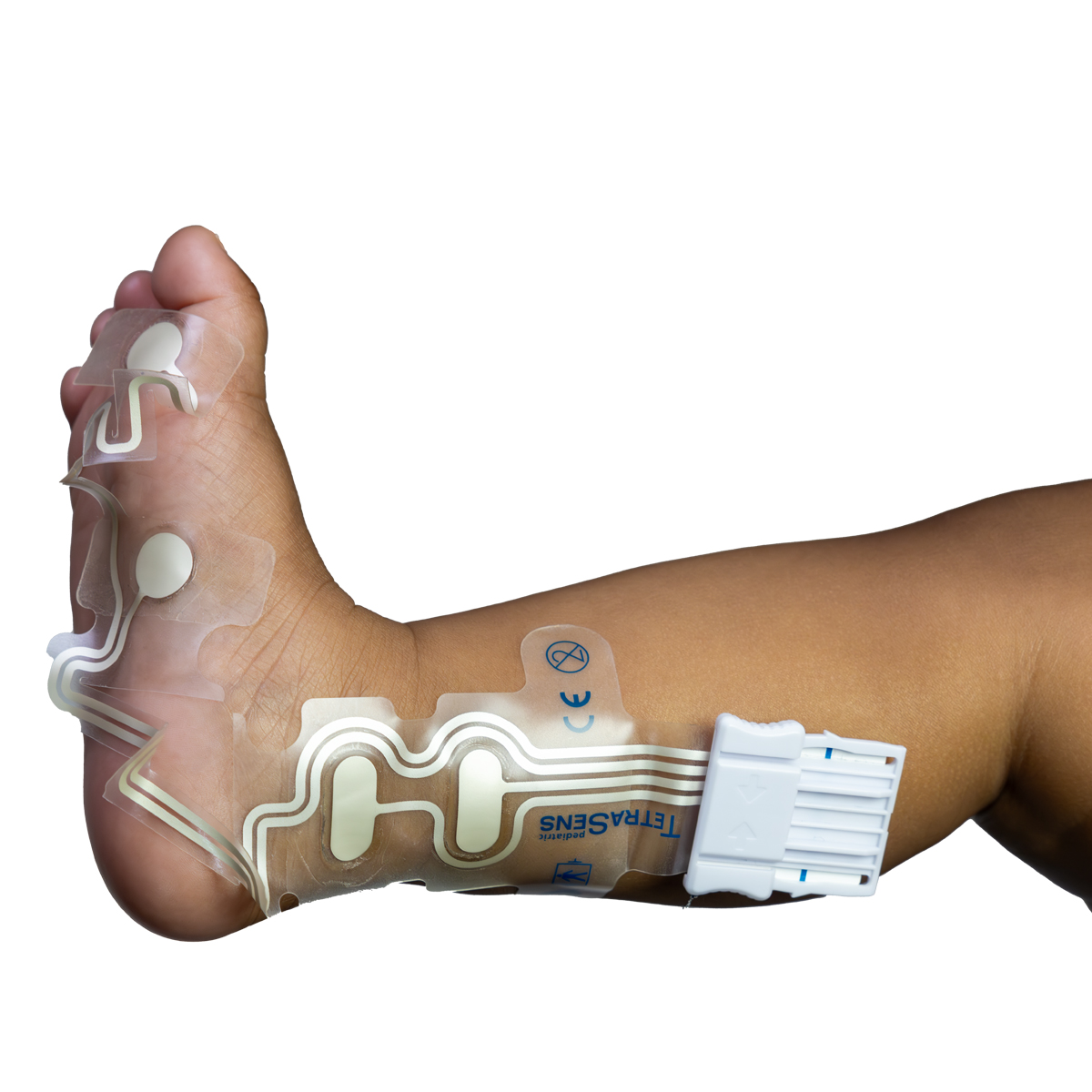

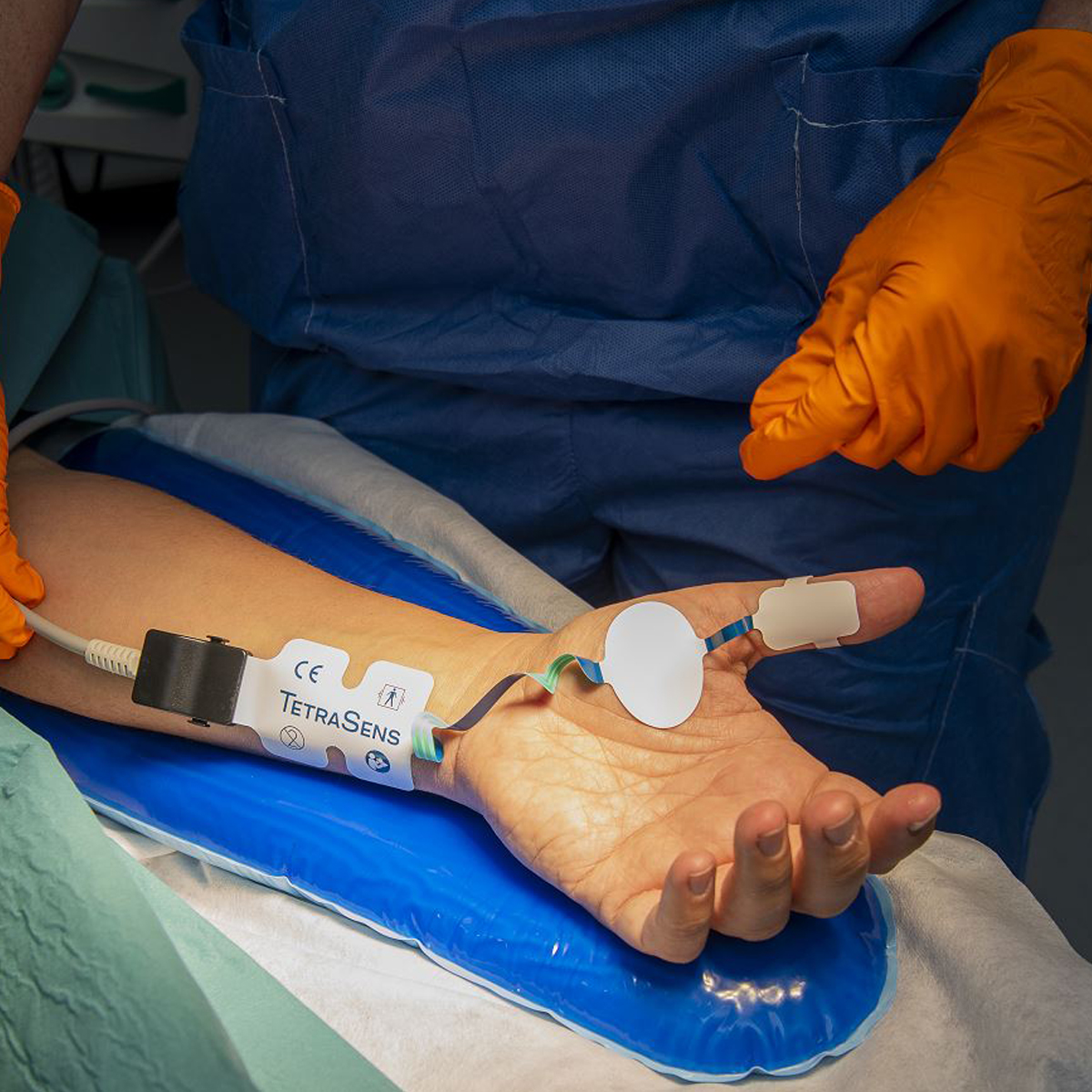

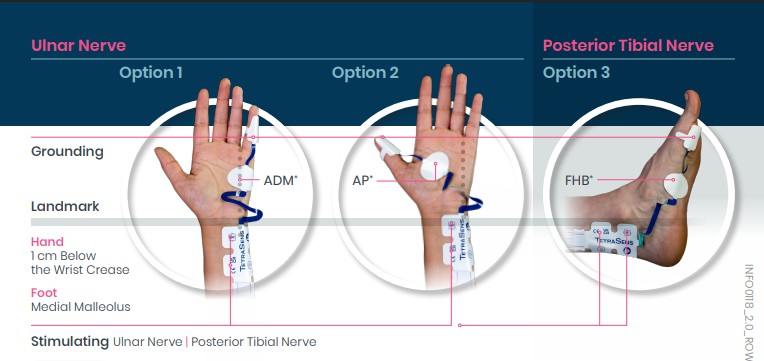

TetraSens electrode array has two proximal stimulating electrodes, one recording electrode and one reference electrode. The application is easy and quick. TetraSens electrode array is for single-patient use in order to avoid cross contamination. The electrodes can be applied on either hand, with the stimulation electrodes over the ulnar nerve at the wrist and the evoked response recorded from any of the hand muscles; typically, either the muscle at the base of the little finger (abductor digiti minimi muscle), or, more commonly, from the muscle at the base of the thumb, adductor pollicis muscle. TetraSens can also be placed on the FDI muscle (first dorsal interosseous). When the hand is inaccessible, the posterial tibial nerve (flexor hallucis brevis muscle), can be used for NMT monitoring.
Service is essential to keep medical equipment operational and safe. Our Nordic service team consists of experienced service technicians stationed across the Nordic countries. Our service technicians are ready to take on your every service need.”
Nasal PAP ventilation system
The SuperNO2VA nasal PAP ventilation system uses the flow from any oxygen source. Delivers positive airway pressure to stent open the upper airway, allowing for the preoperative delivery of positive pressure ventilation and oxygen for patients with a decreased level of consciousness. The SuperNO2VA™ nasal PAP ventilation device is available in medium and large sizes and is offered as a standalone mask with a head strap and as a system, kitted with a hyperinflation bag. These configurations offer flexibility as it allows the SuperNO2VA™ nasal PAP ventilation device to be used with either an anesthesia machine or with only an oxygen flow meter.
For all essential spirometry testing
The modular JAEGER Vyntus™ PNEUMO belongs to the Vyntus Family and is combinable with Vyntus APS for bronchial challenge testing and/or Vyntus IOS Impulse Oscillometry for measuring central and peripheral airway resistance.
Use your Vyntus Pneumo for all of the essential spirometry testing: Flow/Volume-loop (FVC), Slow Vital Capacity (SVC), Maximum Voluntary Ventilation (MVV), Pre and Post medication testing or therapy control.
Optionally, Vyntus Pneumo allows expanding your diagnostic possibilities with measurements like Rocc, P0.1, Pmax, SNIP, rhinomanometry and compliance. Vyntus Pneumo is enhanced by the workflow- and quality-driven SentrySuite™ Software.
The reliable, proven, accurate, heated Jaeger pneumotach has been selected as the measurement device of choice in hundreds of publications. Its excellent dynamic range allows for testing a broad population, from small children to athletes. Thousands of PFT labs profit daily from its high performance.
Untethered six-minute walk test
Vyntus™ WALK allows patients to perform an untethered six-minute walk test (6MWT) by wearing wireless sensors that communicate data to a technician-held tablet PC. Standardize testing to the recommended is 6MWT protocol, because consistent testing yields consistent data for comparison
The system is both patient- and technician-friendly and because we know a single sensor does not fit all clinical needs, comes with an array of easy-to-wear sensors. Because standardizing the complete testing process is critical to meaningful data for patient trending, Vyaire has integrated the complete ATS testing standards in the workflow-driven tablet software application.
Pulmonary Function Testing from infant to adult patients
The EXHALYZER® D offers various lung function tests for infants (>3 kg), children and adult patients. The modular system is easily upgradable and fully compliant with the ATS / ERS recommendations for infant and pediatric pulmonary function testing.
